Details

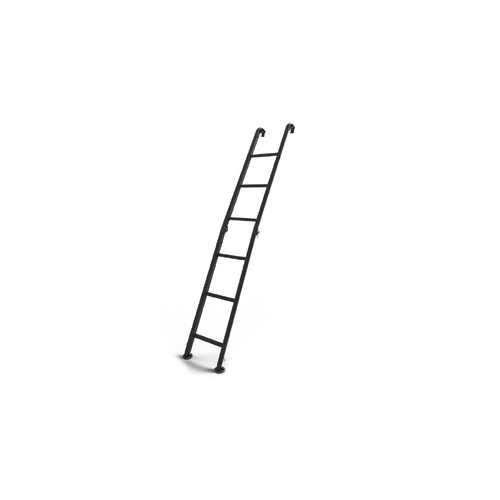

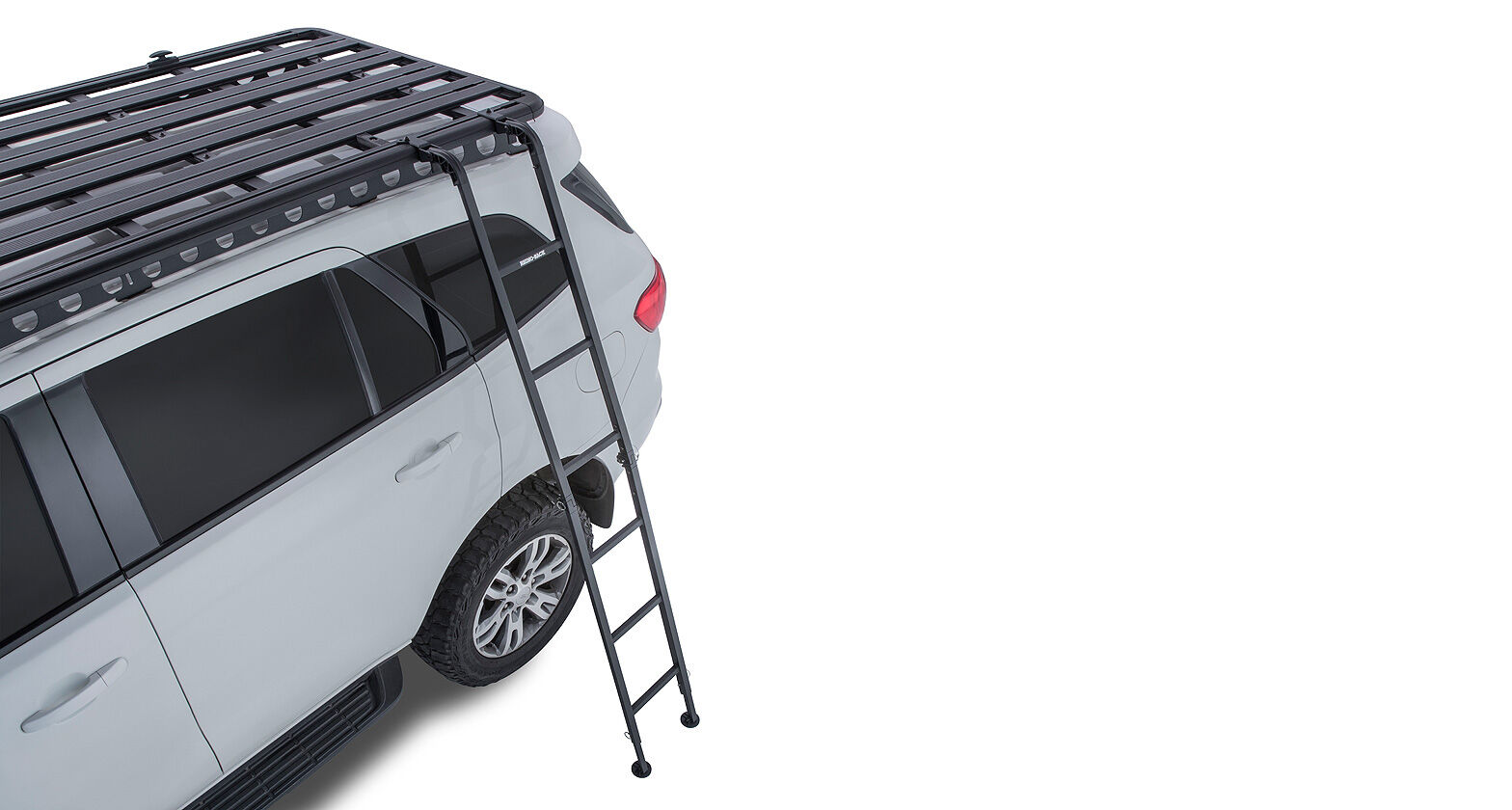

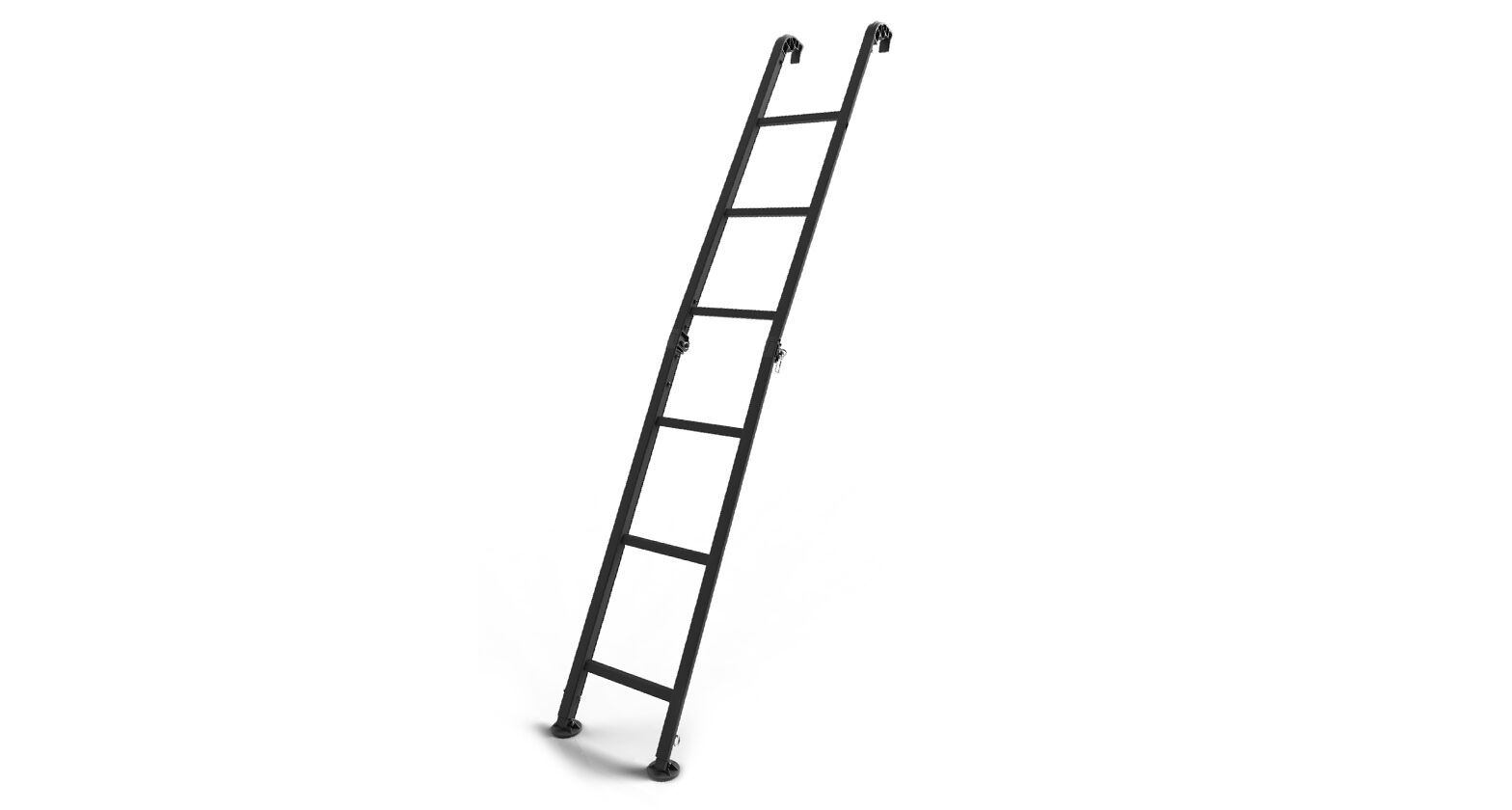

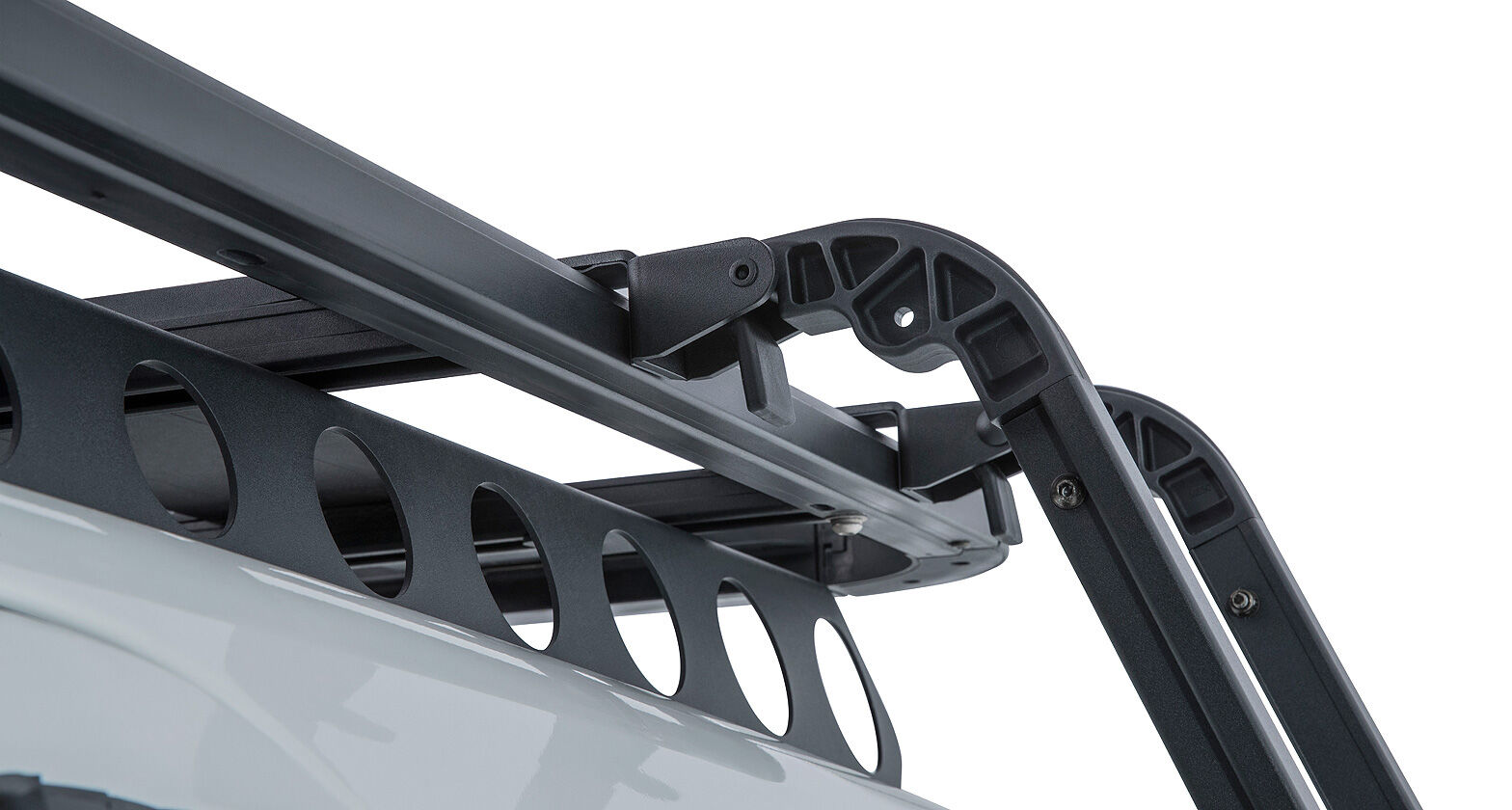

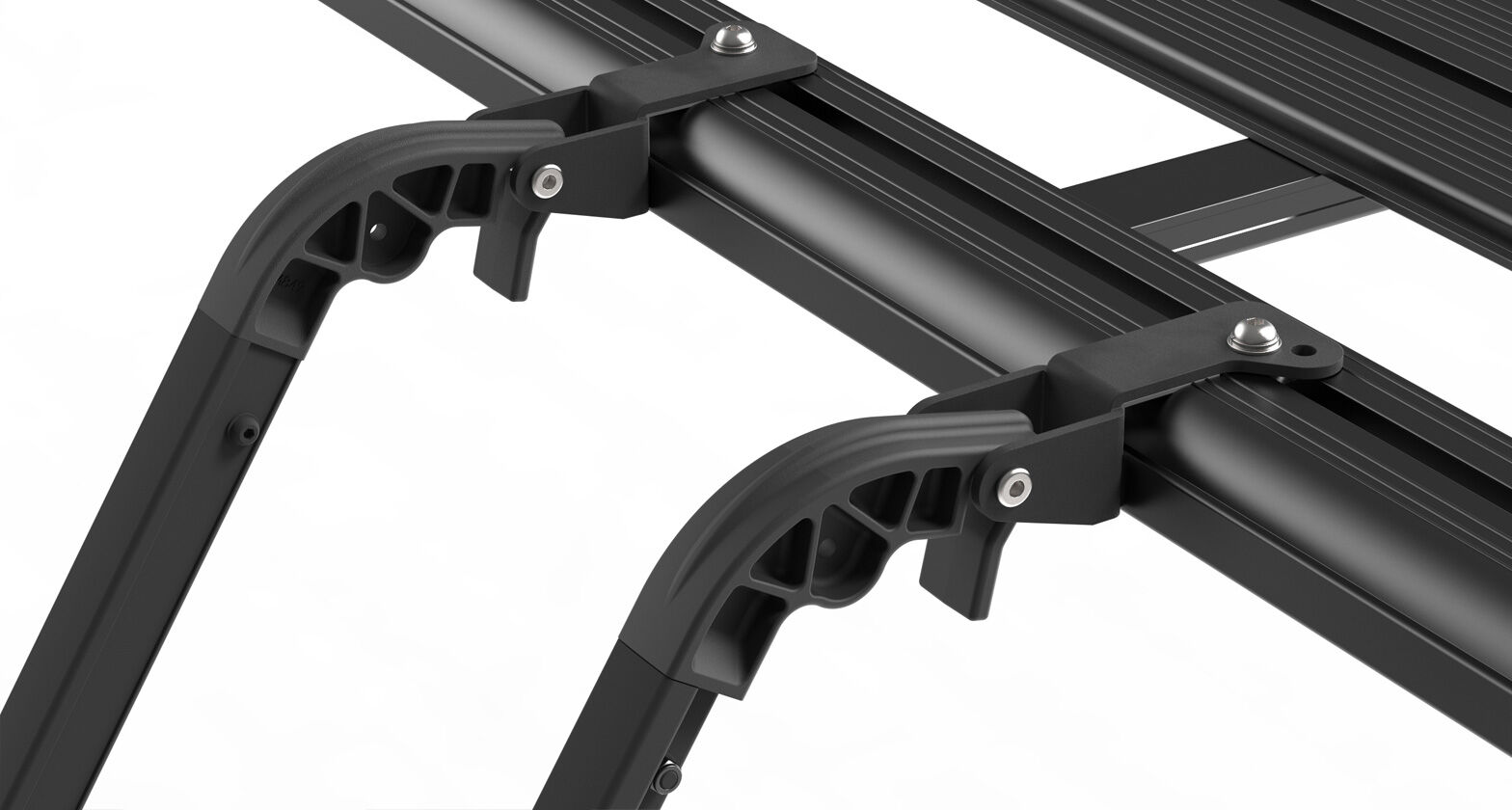

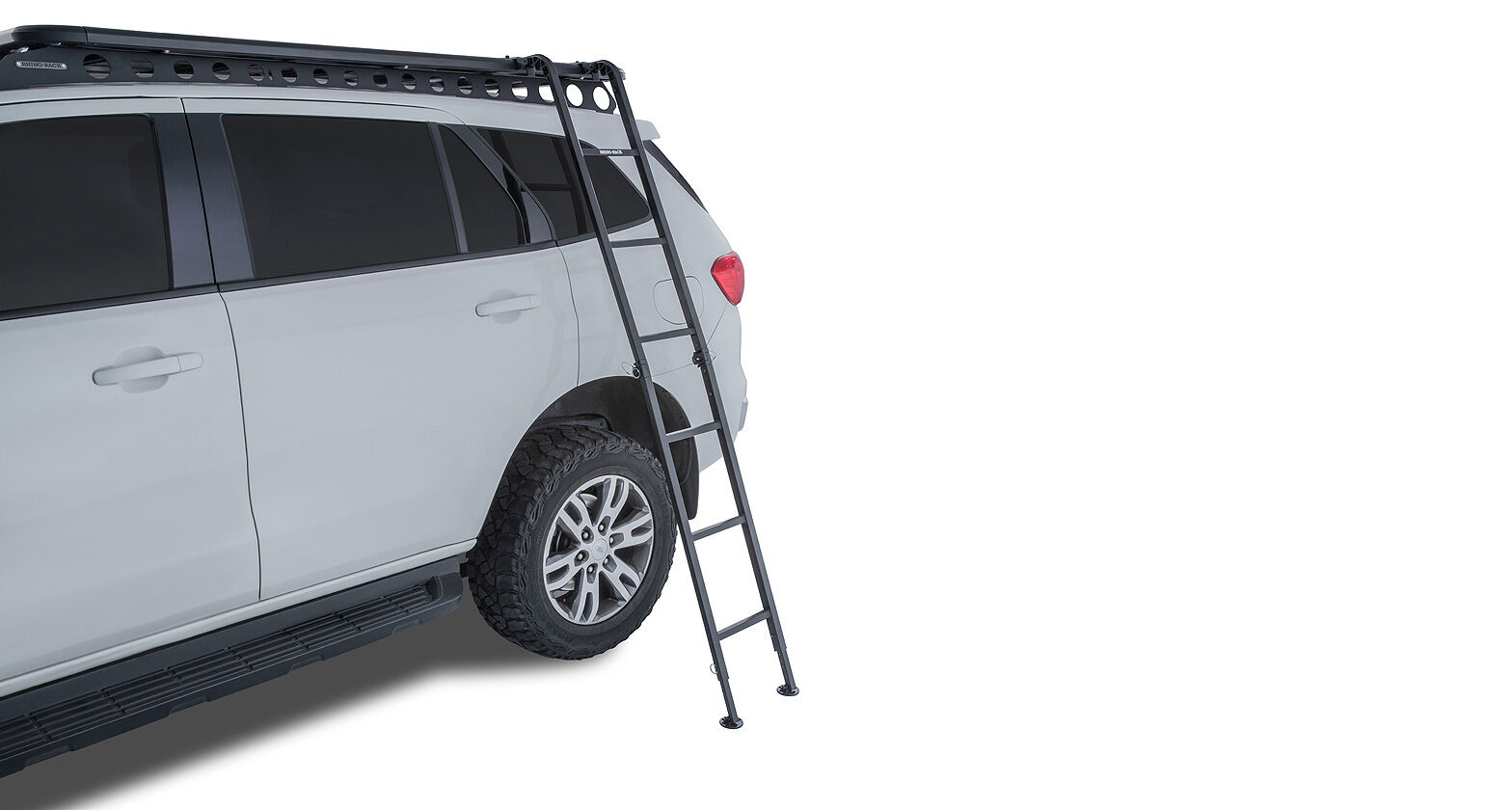

The Aluminium Folding Ladder connects to the edge of your Pioneer Systems using a specific mounting bracket fixed with bolts for added stability. The mounting bracket can be installed on any side of the vehicle as desired. The ladder unfolds at an angle to prevent contact with your vehicle. Constructed from Aluminium with a black powder coat finish, the Aluminium Folding Ladder is built strong and durable to last a lifetime without rusting. The ladder folds down to 1060mm for compact storage and can be used with RUFLB for convenient storage outside the vehicle.

Features:

• For use with Rhino-Rack Pioneer Systems
• Alloy construction with cast steel hinges

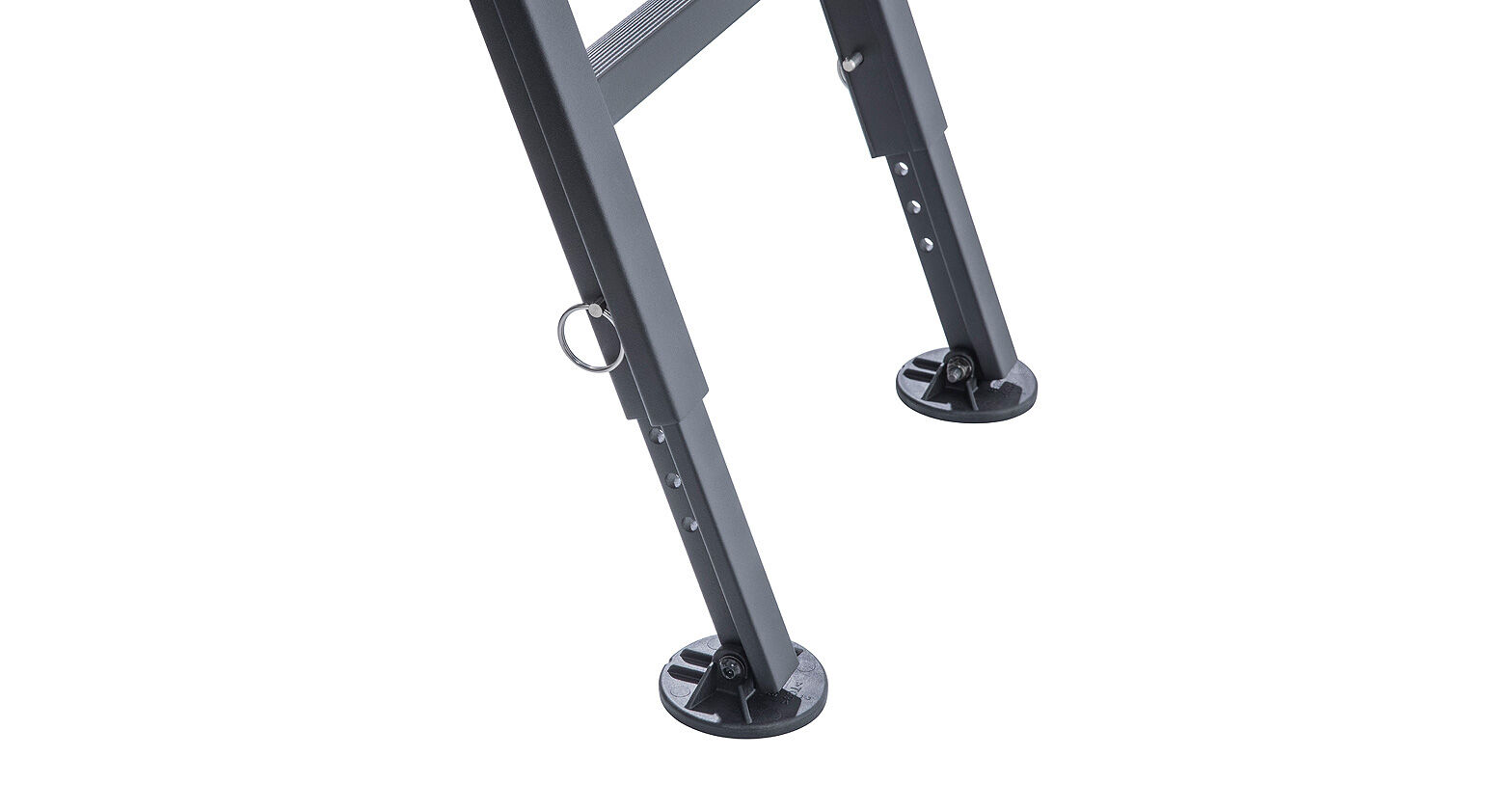

• Wide feet (70mm / 2.7”) are perfect for use on soft ground
• Adjustable feet extend to 325mm (19.7”) to ensure stability on uneven ground
• Maximum ladder length 2325mm (91.5”)
• Maximum load rating of 125kg (275lb)
• Ladder folds to 1060mm (41.7”)

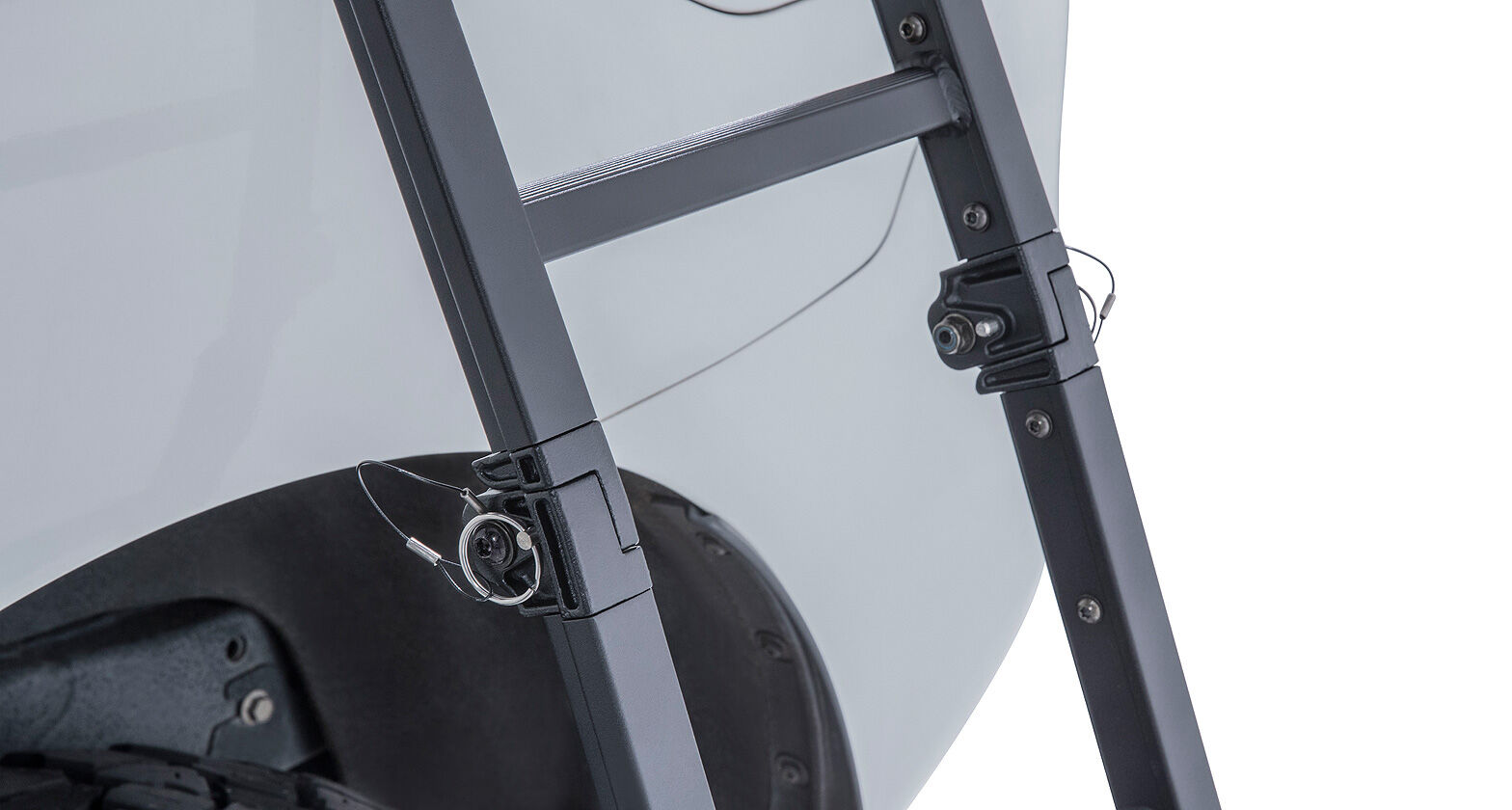

• Locking pin fitted to the ladder with a flexible cable

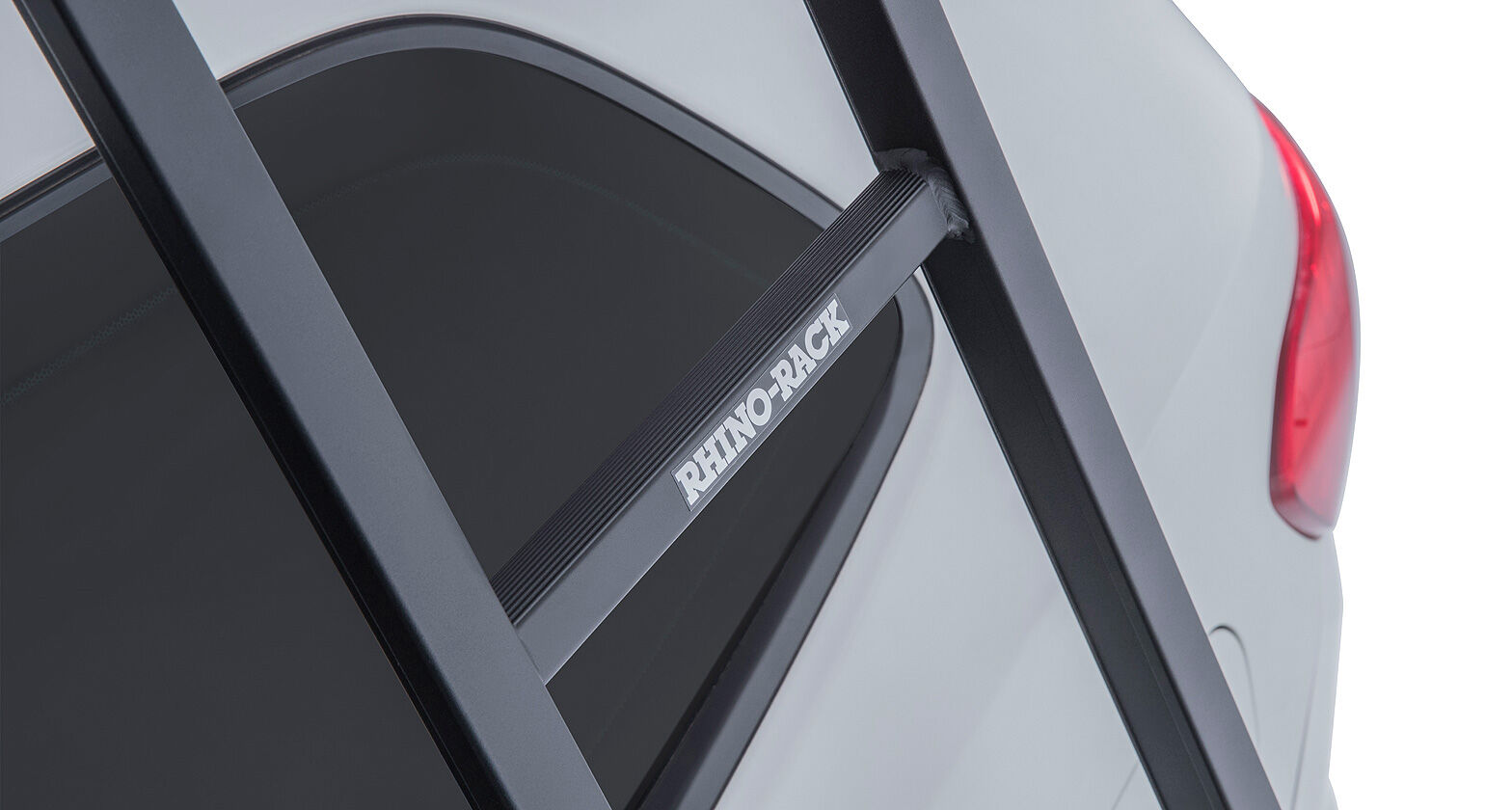

• Angled to prevent contact with vehicle
• Mounting brackets and hardware included
• Additional brackets sold separately Part # 43217 #RUFLB

Important Safety Information:

• Ensure you test the ladder and mount are stable and securely in place before use
• Be aware of your surroundings when using the ladder
• Only attempt to use the ladder when the vehicle is stationary with the handbrake engaged
• Do not use if ladder is damaged
• Not recommended for use with or near electrical material
• Do not overload ladder (load rating 125kg/275Ib)
• Avoid using ladder in high wind or rain
• Only have one person on the ladder at any time
• Do not jump off the ladder
• Wear appropriate footwear when using the ladder
