Mr Hitches MHTBHRK
Mister Hitches Tow Ball & Retention Plate Kit Hi Rise To Suit Alko Aks Euro Coupling
- Available for Backorder
- Genuine Australian Stock
- Installation Available
Details
The Mister Hitches Hi-Rise Tow Ball & Retention Plate Kit is designed to provide additional height when towing and is specifically tailored for use with European-style friction head trailer couplings, such as AL-KO AKS couplings. Here are the key features and specifications of the kit:

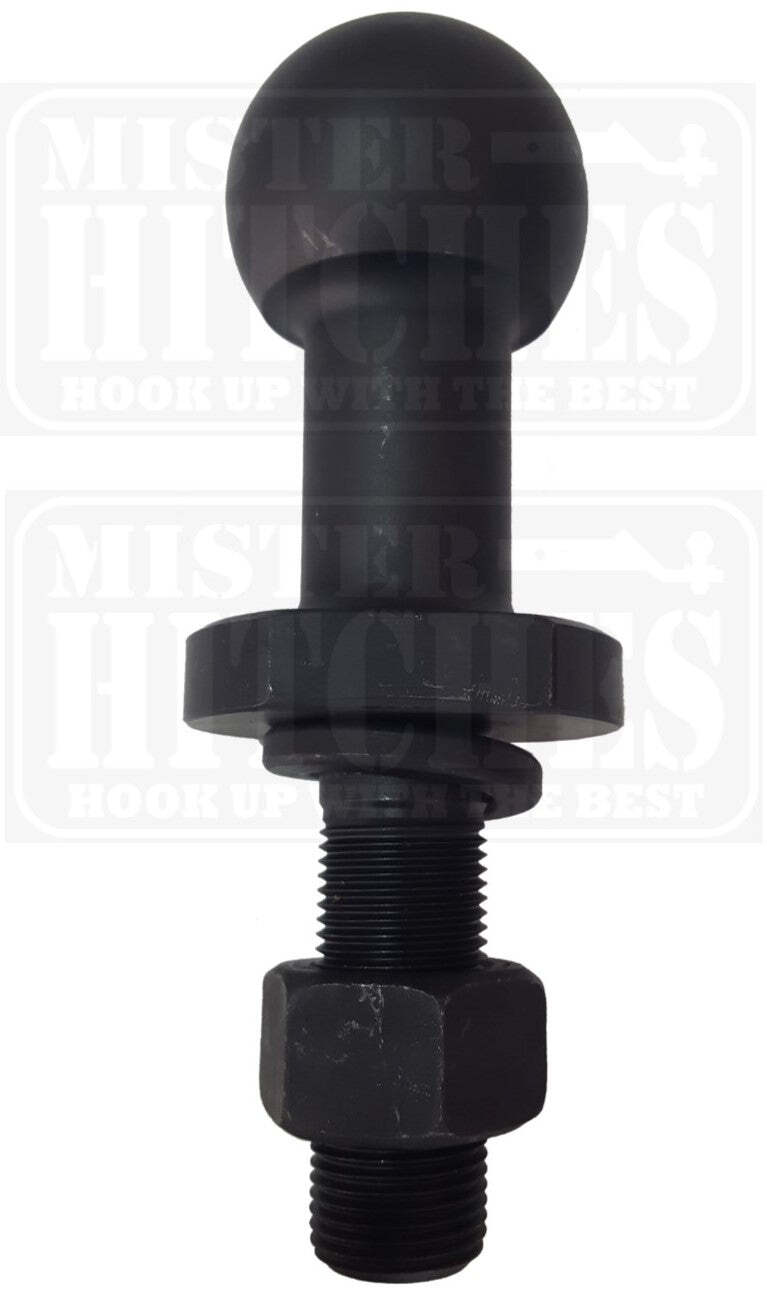

Tow Ball:
-
Height: The Hi-Rise Tow Ball is approximately 24-25mm higher than a standard tow ball. This additional height is designed to accommodate AL-KO AKS friction couplings and other applications where extra height is required.
-
Compatibility: The kit is suitable for use with AL-KO AKS friction couplings, including the AKS2003 and AKS3004 models. It ensures a secure connection when used with these couplings.
-
Specifications:
- Ball Diameter: 50mm
- Load Capacity: 3500kg
- Shank Diameter: 7/8" (22.2mm)
- Shank Length: 65mm
- Finish: Black Oxide
- Flat-Sided Base: The tow ball features a flat-sided base for easy tightening and removal. It can also be used with the included retention plate.
-
Dimensions: The tow ball has 53mm between the tow ball flats, providing a secure connection.
-
Included Accessories: The kit includes a spring washer and nut for installation.
-
Compliance: The Hi-Rise Tow Ball complies with Australian Standards (AS/NZS 4177.2), ensuring its safety and performance in accordance with industry standards.

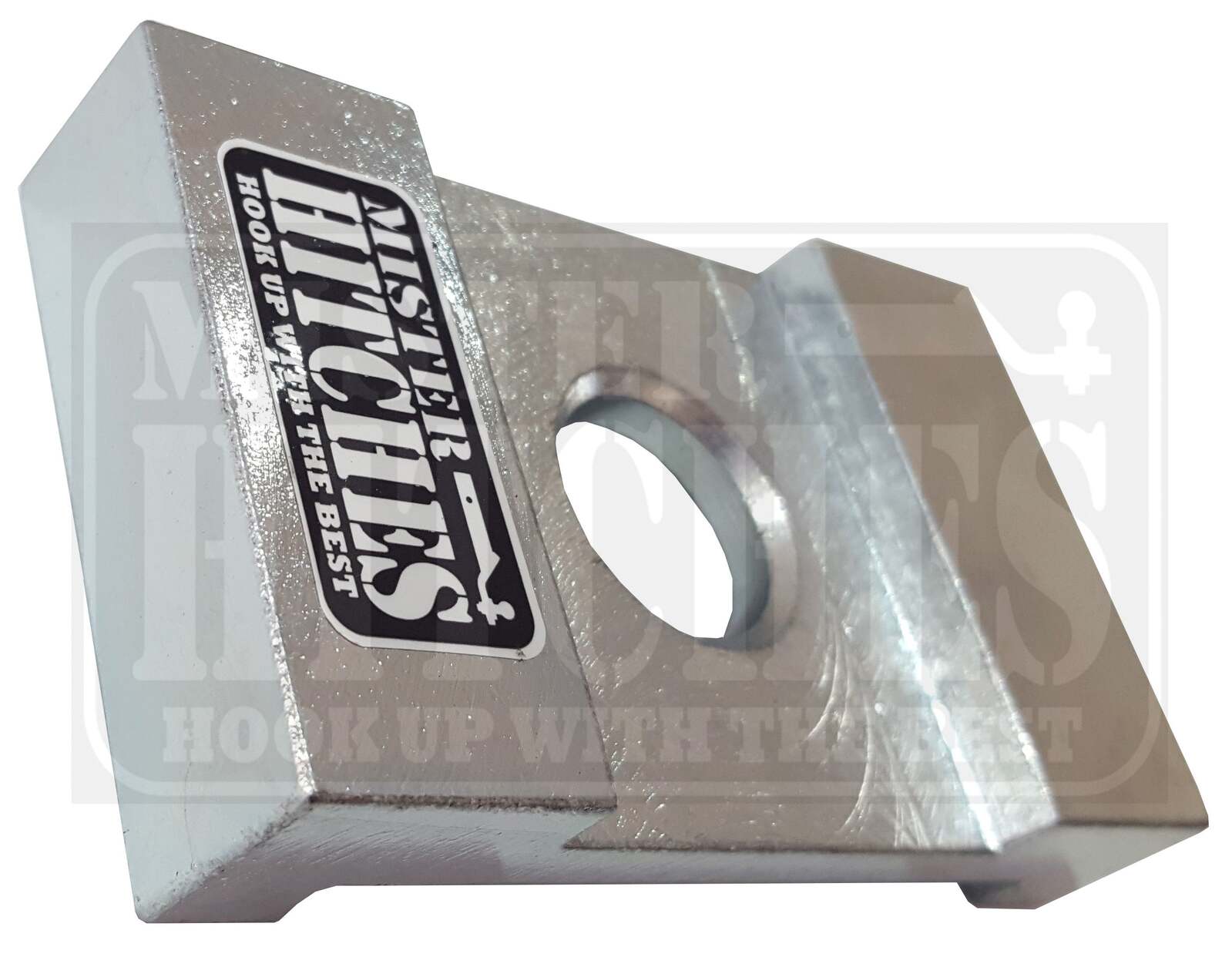

Retention Plate:
-
Compatibility: The retention plate is designed to suit 75mm wide tow ball mounts and can be used with the MHTB50HRB Hi-Rise Tow Ball or MHTB50BB standard height tow ball included in the kit.
-
Finish: The retention plate is zinc-plated to provide corrosion protection.
-
Purpose: The retention plate is specifically designed to prevent the tow ball from rotating when coupling friction is applied, ensuring a secure and stable connection.
Specifications
SKU | MHTBHRK |
---|---|
Brand | Mr Hitches |
