Mr Hitches MHWDS07
Mister Hitches Drop Shank 8.5" Shank Short Shank (Suits Pajero Sport)
- Available for Backorder
- Genuine Australian Stock
- Installation Available
Details

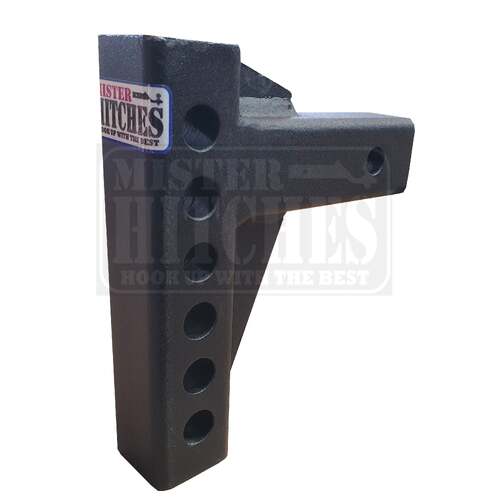

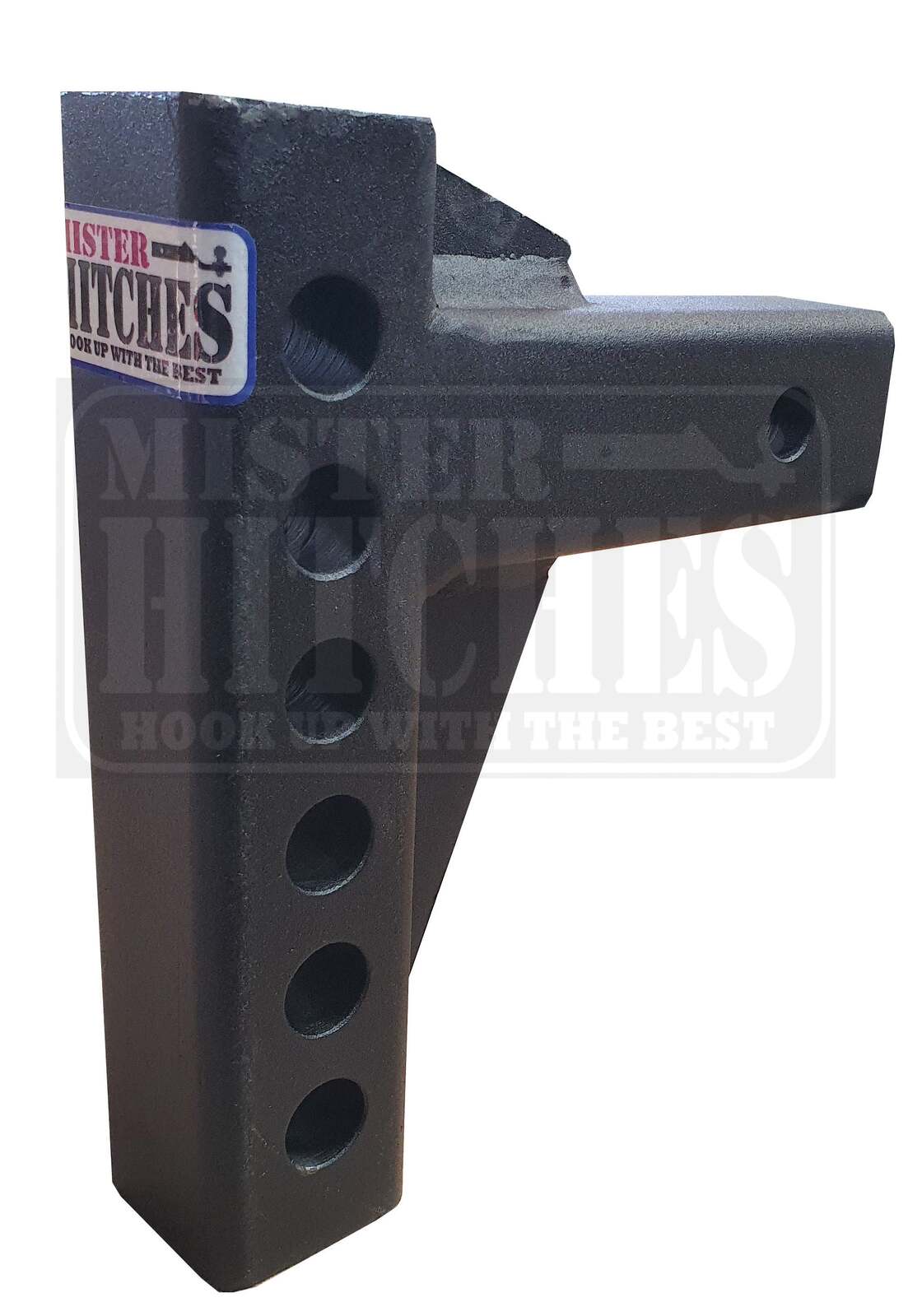

The Mister Hitches Short Length Shank is designed for use with Mister Hitches Weight Distribution Systems and the Multi-Hitch Mix 'N' Match System. It's specifically suitable for vehicles with O.E.M. shallow tow bar receivers like the MM Pajero Sport and Ford Ranger (pre Next-Gen). Here are the key specifications and features of this shank:

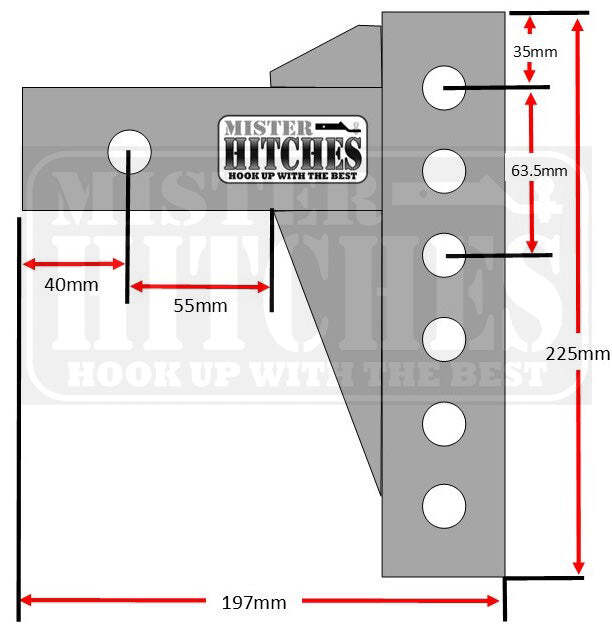

- Center of Pin Hole to End of Shank: 40mm
- This measurement is from the center of the pin hole to the end of the shank, indicating its length.
- Center of Pin Hole to Gusset: 55mm
- This measurement specifies the distance from the center of the pin hole to the gusset.
- Overall Length: 197mm
- The overall length of the shank from one end to the other.
- Bolt Hole Spacings: 32mm
- The distance between bolt holes on the shank.
- Drop: 63.5mm (Top of Shank to Top of WDH Ball Platform)
- This represents the drop measurement, from the top of the shank to the top of the Weight Distribution Hitch (WDH) ball platform.
- Rise: 165mm (Top of Shank to Top of WDH Ball Platform)
- The rise measurement, from the top of the shank to the top of the WDH ball platform.
- Shank Overall Height: 225mm
- The overall height of the shank.
- Shank Material: Solid steel, 50.8mm square
- The shank is made of solid steel and has a square shape. It's compatible with Hayman Reese-style towbar receivers.
- Rating: The shank is rated at 4.5T (4.5 tons) and is suitable for use with weight distribution systems.
Please note that this shank is designed to provide a secure and suitable connection for weight distribution systems and is compatible with specific shallow tow bar receivers. It's an essential component for setting up your towing system and ensuring a safe and compliant towing experience.
Specifications
SKU | MHWDS07 |
---|---|
Brand | Mr Hitches |
