Details

The Mister Hitches 4000KG Extra Heavy Duty Adjustable Ball Mount with a 12-stage short shank is a versatile towing accessory designed for robust towing needs.

Features

• 12 Stages of Adjustment: This ball mount offers 12 stages for height adjustment, providing both drop and rise configurations for your tow ball.
• Fully Reversible: Both parts of the hitch are fully reversible, offering maximum flexibility in adapting to various towing setups.
• Six Stages of Drop: You can achieve drop heights of 80mm, 110mm, 130mm, 140mm, 160mm, and 190mm, allowing you to lower the tow ball to the desired level.
• Six Stages of Rise: It also offers rise heights of 50mm, 80mm, 105mm, 110mm, 135mm, and 165mm, enabling you to raise the tow ball to the right level.
• High Tensile Support Gussets: Featuring 10mm dual support gussets for added strength, ensuring that it can handle heavy towing loads.
• Short Shank Design: This model is equipped with a short length shank, making it compatible with Ranger shallow receiver pin holes (50mm from the end of the shank).
• High Tensile Bolts: Uses 12.9-grade high tensile 16mm bolts, torqued to 189Nm for secure fastening and peace of mind.
• Heavy Duty Ball Platform: Equipped with a 25mm x 75mm heavy-duty ball platform for secure attachment of the tow ball.
• Durable Finish: It has a matte black Seaguard finish, adding an appealing look and providing protection against the elements.
• Robotic Welding: Robotic welding ensures consistent quality and durability.
• CNC Machined: CNC machining is used for maximum accuracy in the manufacturing process.
• Fits 2" x 2" Towbar Receivers: Designed to fit standard 2" x 2" towbar receivers, offering compatibility with a wide range of towing setups.
• ADR62 Compliant: Compliant with ADR62 safety and quality standards, ensuring peace of mind regarding safety.
• Designed by Mister Hitches Australia: Designed with the expertise of Mister Hitches Australia, known for quality and reliability.
• Impressive Ratings: This ball mount is capable of handling a gross trailer weight of 4000KG and a tongue weight of 400KG, making it suitable for heavy-duty towing applications.
• Ball Hole Size: The ball hole size is 7/8", ensuring compatibility with most standard tow balls.

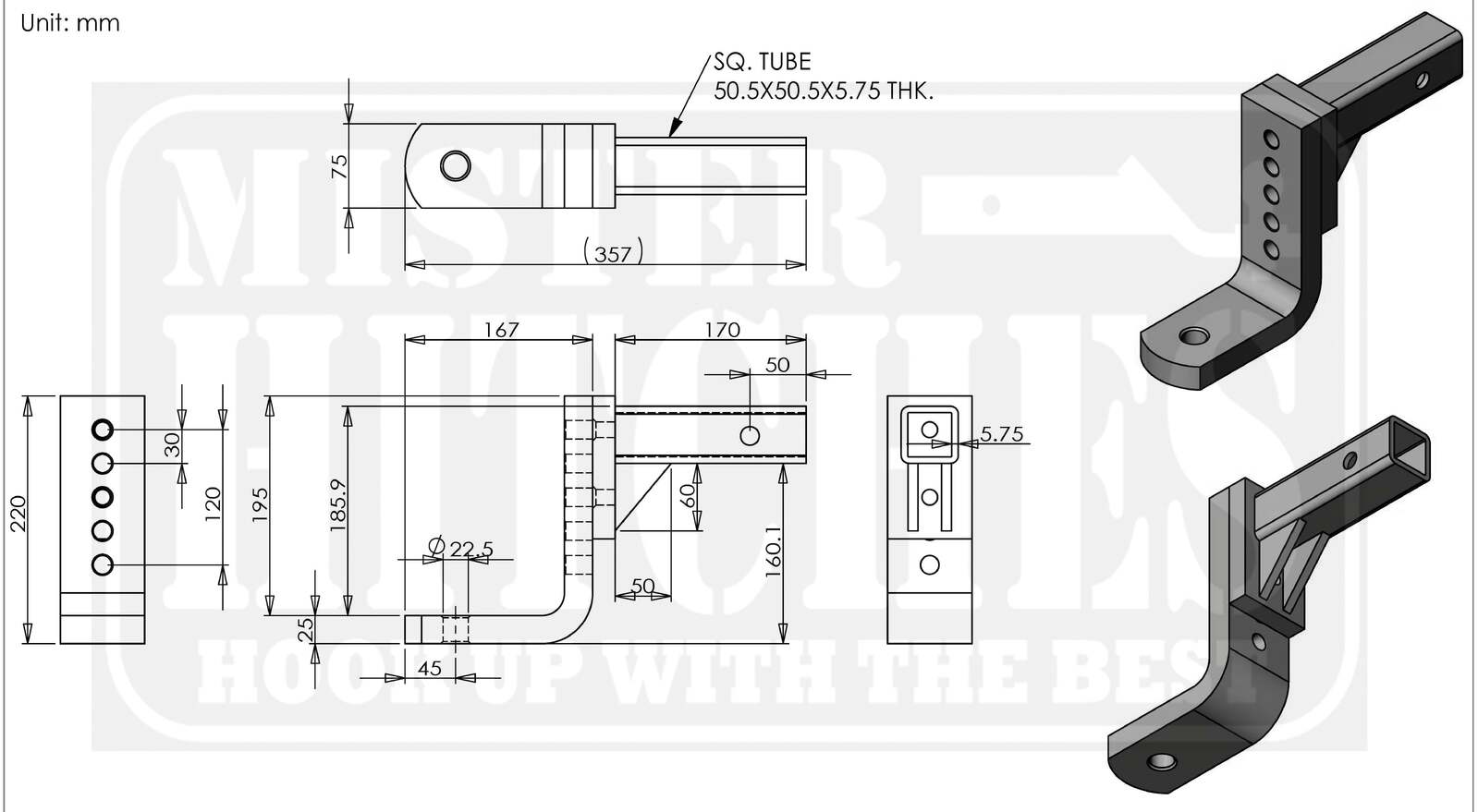

• Versatile Length: The length, measured from the center of the pin hole to the center of the ball hole, is 262mm, catering to various towing scenarios.
• Pin Hole to End of Shank: The distance from the pin hole to the end of the shank is 50mm.
• End of Shank to Gusset: The distance from the end of the shank to the gusset is 120mm, offering additional structural support.
• Suitable for Various Couplings: This ball mount is suitable for use with Stone Stomper under-ball brackets and most couplings, including D035.
• Approximate Measurements: Note that measurements are approximate, ensuring flexibility and adaptability to various towing setups.
