Details

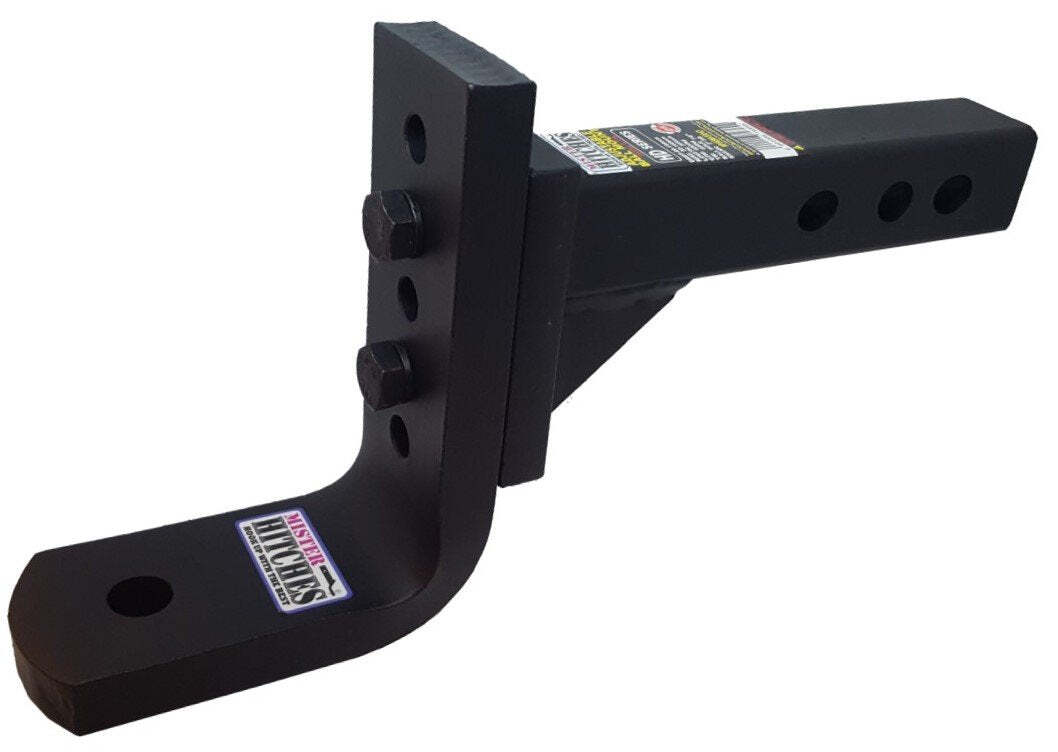

The Mister Hitches 4000KG Extra Heavy Duty Adjustable Ball Mount with 12 Stages is a versatile towing accessory that provides numerous options for adjusting the height of your tow ball to suit your towing needs.

Features

• 12 Stages of Adjustment: This ball mount offers a total of 12 stages for height adjustment, providing both drop and rise configurations for your tow ball.
• Six Stages of Drop: You can achieve drop heights of 80mm, 110mm, 130mm, 140mm, 160mm, and 190mm, allowing you to lower the tow ball to the desired level.
• Six Stages of Rise: It also offers rise heights of 50mm, 80mm, 105mm, 110mm, 135mm, and 165mm, enabling you to raise the tow ball to the right level.
• High Tensile Support Gussets: Featuring 10mm dual support gussets to enhance strength and stability, ensuring that it can handle heavy towing loads.
• Three Pin Holes: The new model includes three pin holes, making it compatible with Ranger short shank tow bars, offering greater flexibility in positioning.
• High Tensile Bolts: Uses 12.9-grade high tensile 16mm bolts for superior fastening and reliability.
• Heavy Duty Ball Platform: Equipped with a 25mm x 75mm heavy-duty ball platform for secure attachment of the tow ball.
• Durable Finish: It has a matte black Seaguard finish, which not only adds an appealing look but also provides protection against the elements.
• Robotic Welding: Robotic welding ensures consistent quality and durability.
• CNC Machined: CNC machining is used for maximum accuracy in the manufacturing process.
• Fits 2" x 2" Towbar Receivers: Designed to fit standard 2" x 2" towbar receivers, offering compatibility with a wide range of towing setups.
• Impressive Ratings: This ball mount is capable of handling a gross trailer weight of 4000KG and a tongue weight of 400KG, making it suitable for heavy-duty towing applications.
• Ball Hole Size: The ball hole size is 7/8", ensuring compatibility with most standard tow balls.
• Versatile Lengths: The lengths, measured from the center of the pin hole to the center of the ball hole, are available in 266mm, 305mm, and 331mm, catering to various towing scenarios.
• Pin Hole to End of Shank: The distances from the pin holes to the end of the shank are 50mm, 76mm, and 115mm, offering flexibility in mounting.
• End of Shank to Gusset: The distance from the end of the shank to the gusset is 164mm, providing structural support.
• Suitable for Various Couplings: This ball mount is suitable for use with Stone Stomper and most couplings, including D035.
• Approximate Measurements: Note that measurements are approximate, ensuring flexibility and adaptability to various towing setups.
