SKU: 20MPPT
$270.00
In Stock See Store Availability
Store Location | Available |
---|---|
Kotara | 1 |
Maitland | 1 |
Online | 1 |
iTechWorld ITW-CH12V-25

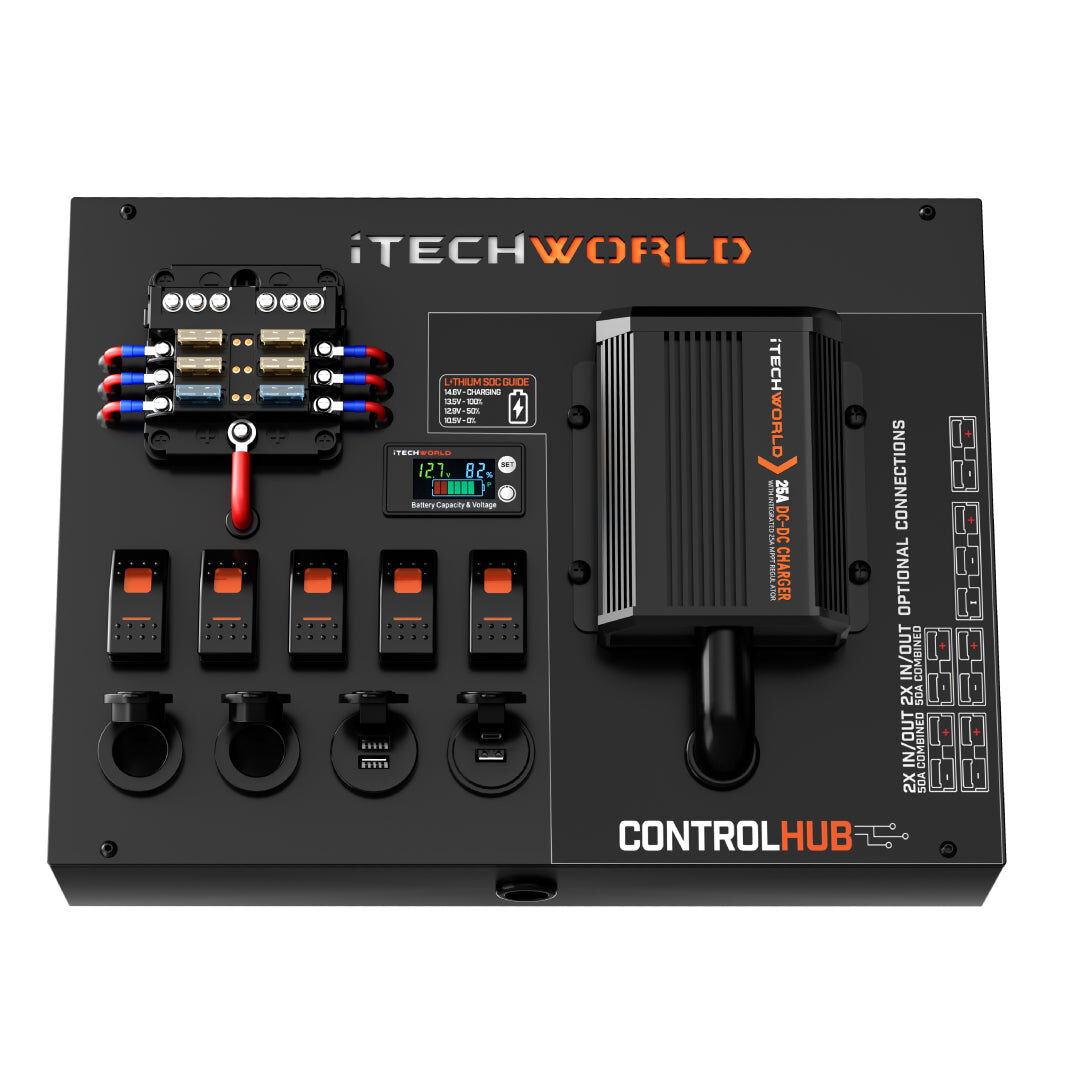

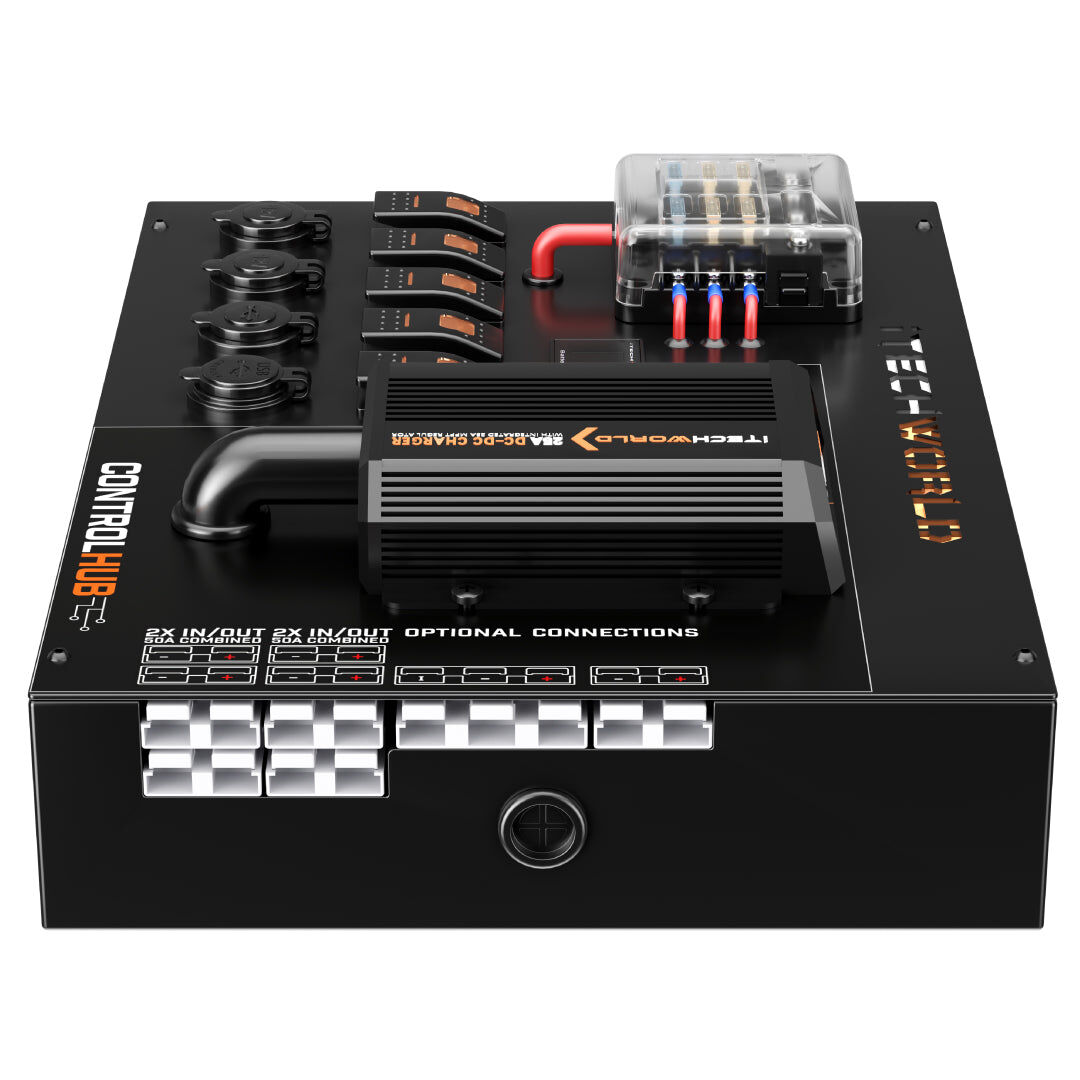

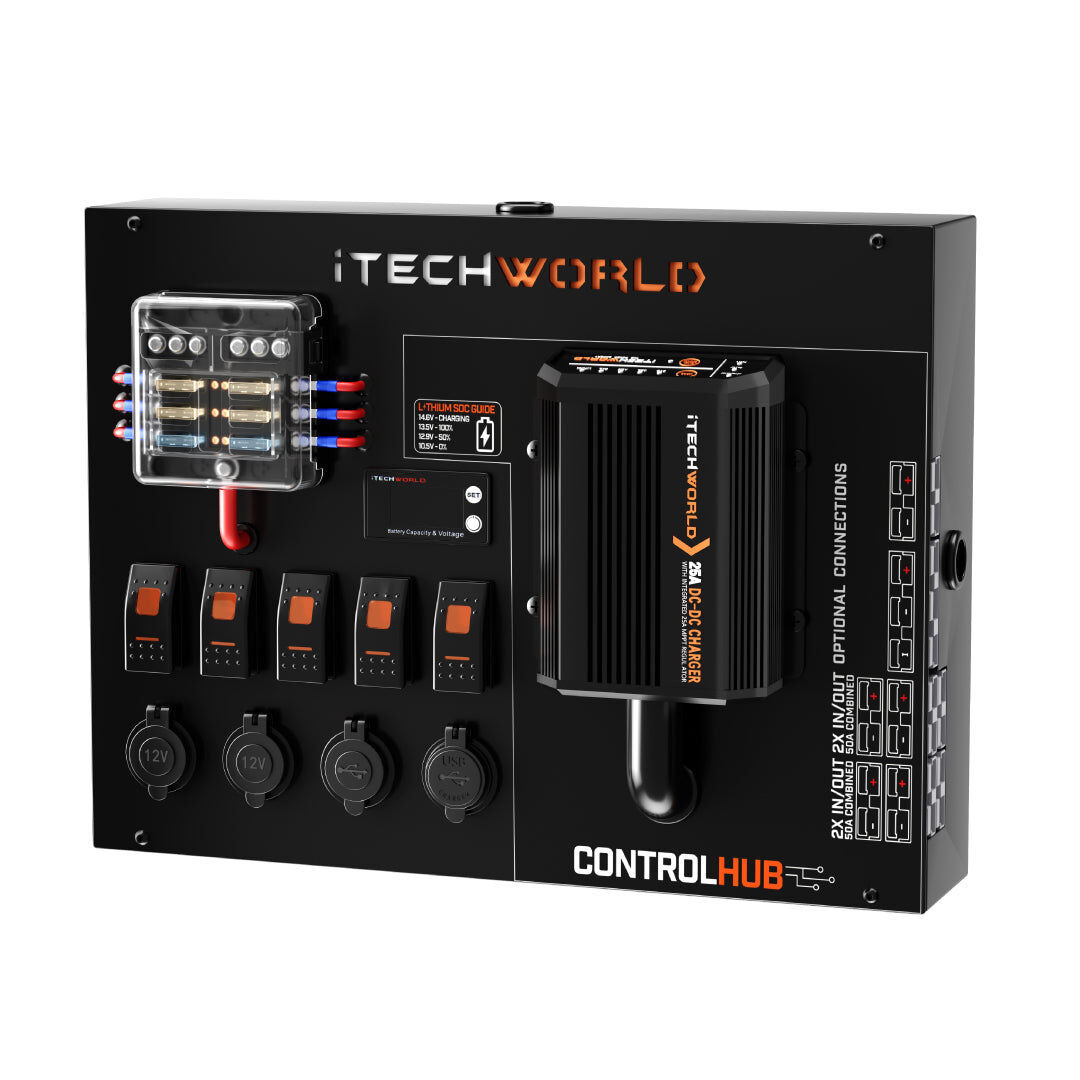

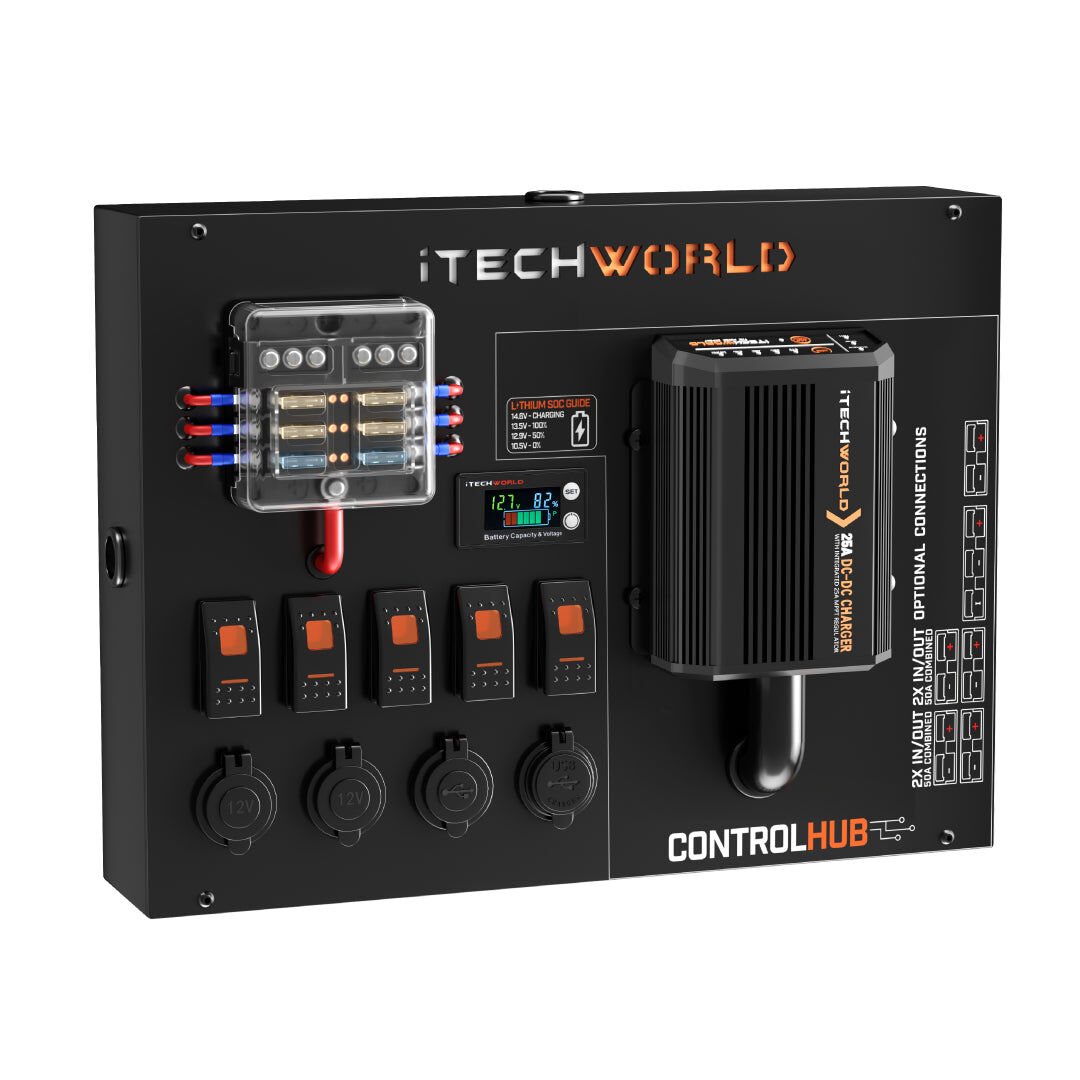

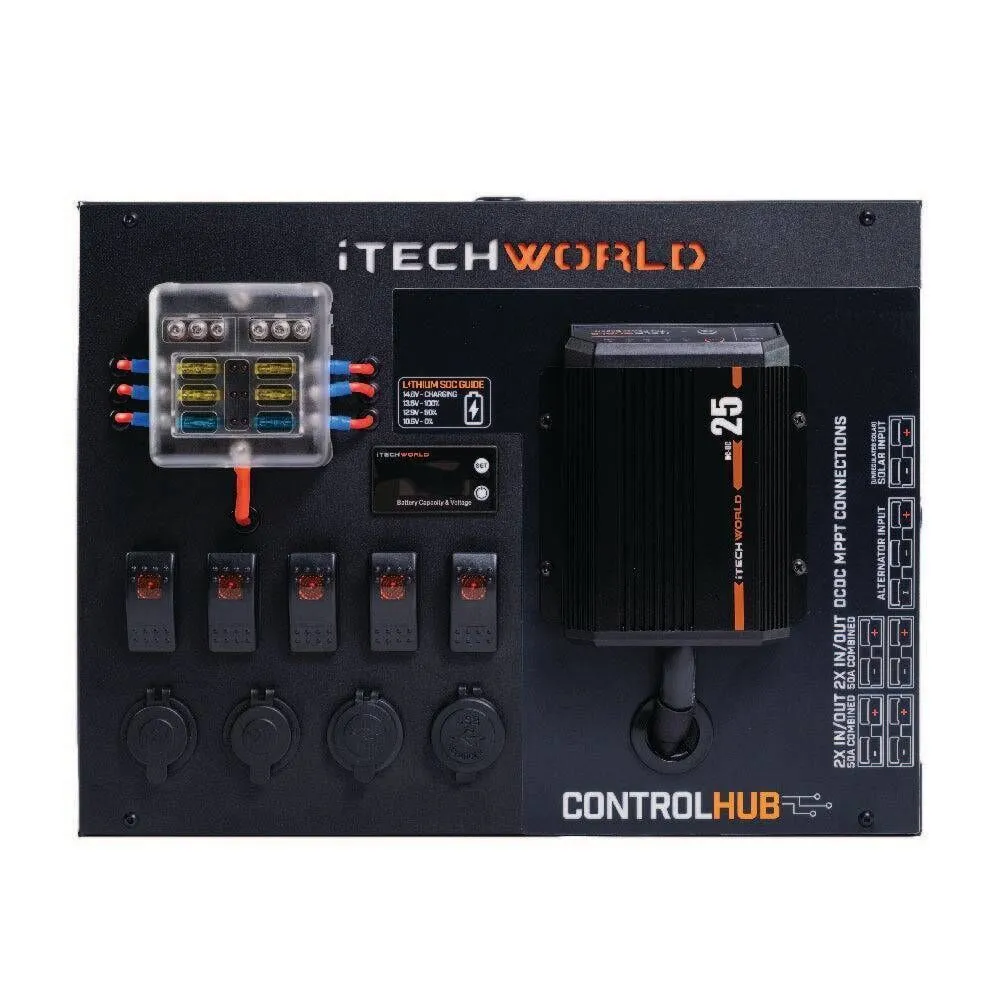

The iTechworld Control Hub is the ultimate 12V power management system, designed for adventurers who enjoy caravanning, camping, 4WDing, and exploring the outback. Engineered for effortless installation, it simplifies 12V setups in canopies, vans, 4WDs, caravans, and more.
The pre-installed iTECHDCDC25 charger ensures seamless power delivery, making it a fully pre-wired, ready-to-use system for hassle-free operation.
Designed for solar efficiency, the 25A MPPT solar input allows direct solar panel integration, providing an eco-friendly and cost-effective charging solution.
For easy accessory management, the five illuminated rocker switches ensure day and night visibility, each equipped with replaceable fuses to protect the battery and maintain peak performance.

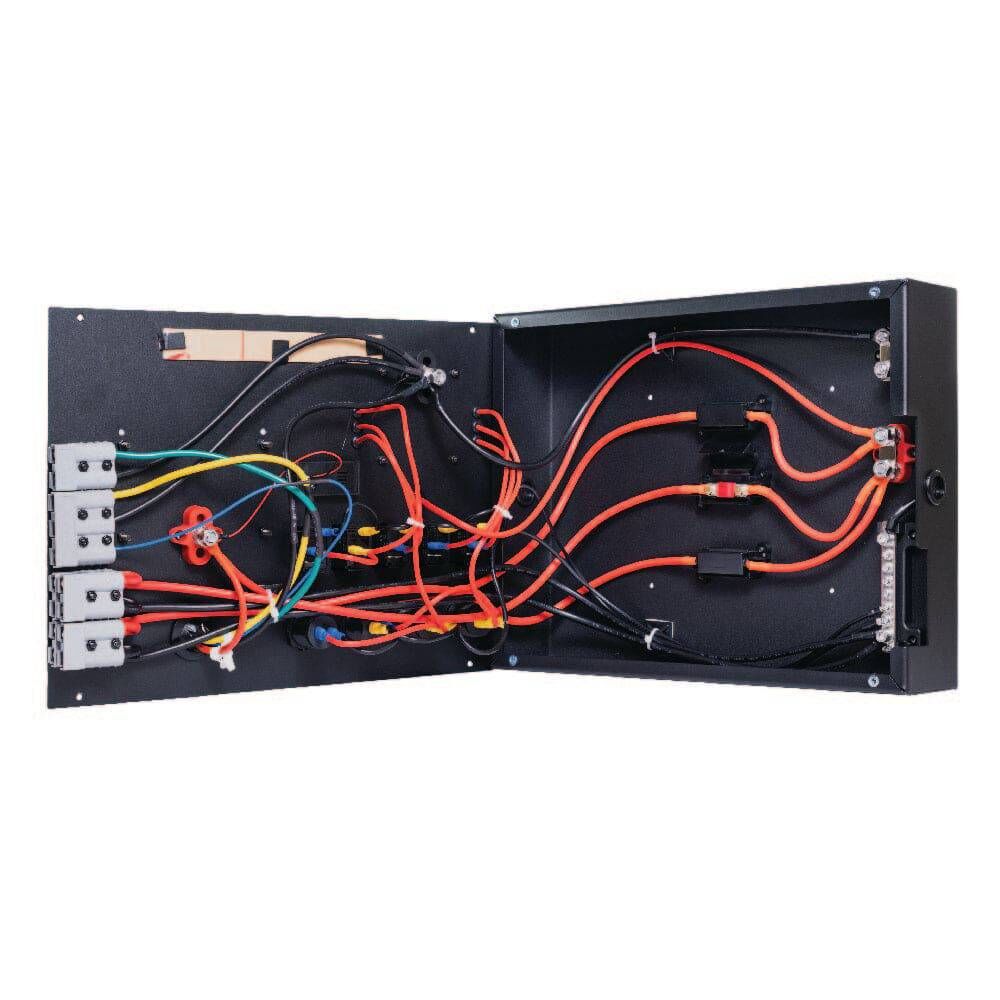

The fully fused and vibration-resistant internal wiring utilizes thick, high-quality cabling, ensuring a steady and reliable connection between the battery and connected accessories.
The 6-way external fuse panel is easily accessible for quick fuse replacements. LED indicators provide an instant visual alert for blown fuses, streamlining fault detection and saving time.
For versatile installation, the Control Hub includes pre-drilled holes and integrated Anderson plugs, allowing effortless integration of a DCDC charger—whether already owned or planned for future expansion.
A built-in low-voltage alarm safeguards the battery by alerting users when voltage drops below 11V. The dedicated on/off switch allows muting of the alarm as needed.
Constructed from matte black, powder-coated aluminium, the Control Hub is built to withstand rugged conditions while maintaining a sleek, professional appearance.
With four pre-drilled holes and multiple cable entry points, the unit offers installation flexibility, allowing users to customize input and output cable routing based on their specific setup requirements.
Control Hub

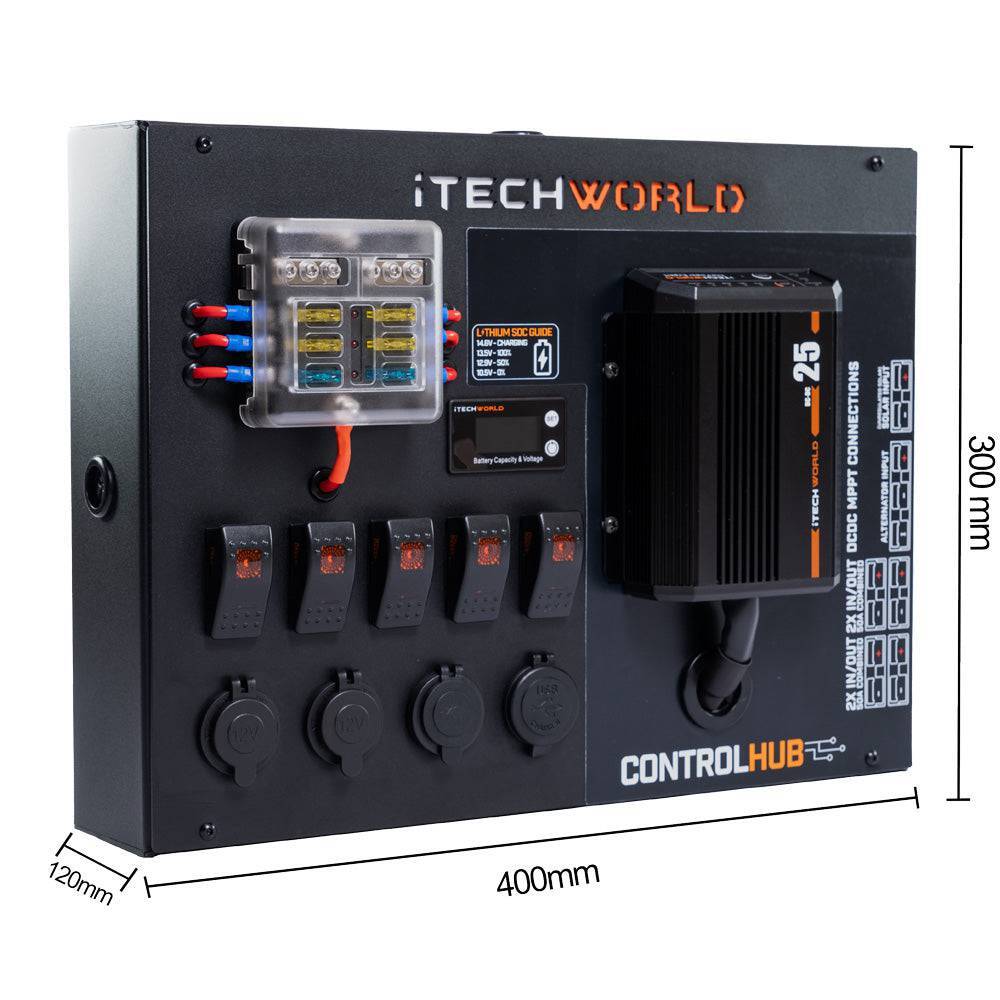

Dimensions (LxWxH): 403 x 304 x 116mm
Dimensions w/ DCDC (LxWxH): 403 x 304 x 119mm
Outputs:
2 x 12V 15A cigarette outputs
1 x USB-C output
3 x QC3.0 USB ports
Inputs/Outputs:
4 x 50A Anderson plugs
Inputs:
3-pin 50A Anderson plug (DCDC alternator input)
50A Anderson plug (DCDC solar input)
DCDC25 Charger
Battery capacity: 50-500Ah
Vehicle input voltage: 9-32V
Solar input voltage: 10-32V
Maximum input current: 25A
Input fuse rating: 40A
Continuous output current: Up to 25A
Output fuse rating: 40A
Minimum auxiliary battery charge start voltage: 4V
Standby current: <10mA
Battery type compatibility: Standard lead-acid, Gel, AGM, Calcium & LiFePO4
Operating temperature: -20°C ~ 80°C
IP rating: IP67
Dimensions (LxWxH): 150 x 127 x 39mm
Weight: 670g
SKU | ITW-CH12V-25 |
---|---|
Brand | iTechWorld |
